BNC CONNECTOR
BNC CABLE SOLUTION
SB047
- for RG-174/U, RG-179/U cable

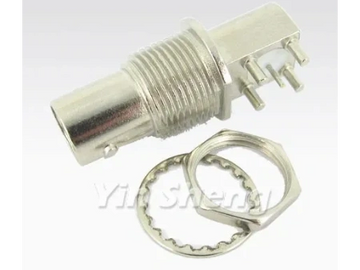

#BNC bulkhead crimp #front mount
SB051
- pin for soldering
- against vibration
- mountinng hole pitch 28 mm
#BNC chassis mount

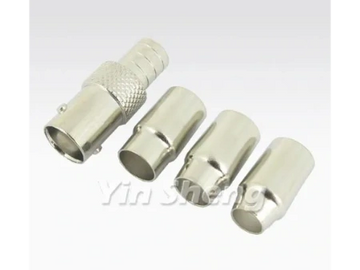

SB105
- 3 pieces combination
- for RG-58/U, RG-59/U, RG-6/U and more
#BNC crimp
SB113
- for RG-58/U, RG-59/U, RG-6/U cable
#BNC crimp #BNC molding

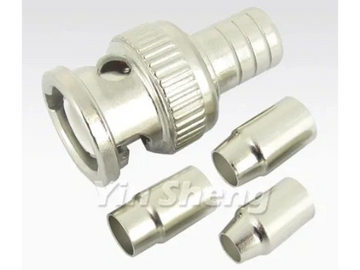

SB114-3
- packed with ferrules of RG-58/U, RG-59/U, and RG-6/U in a single bag
- ferrule model can be requested
#BNC ferrules all in one

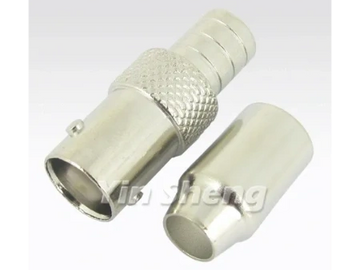

SB121
- 3 pieces combination
- for RG-58/U, RG-59/U, RG-6/U cable
#BNC crimp
SB122
- for RG-174/U, RG-179/U cable
#BNC bulkhead crimp #rear mount
SB123
- 50 ohm or 75 ohm
- inside diameter of pin 1.45 mm
- screw hole to hole sq. 12.7 mm
#chassis mount
SB124A
- 50 ohm or 75 ohm
- inside diameter of pin 1.45 mm
- with nut, washer, and lug
#BNC front mount

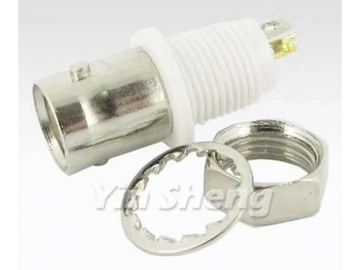

SB126P-ZN
- 50 ohm or 75 ohm
- inside diameter of pin 1.45 mm
- isolated from panel
#BNC isolated
SB161-3
- ferrules of RG-58/U, RG-59/U, and RG-6/U in a single bag
#BNC ferrules all in one
PCB APPLICATION
SB017S
- pin to pin pitch sq. 6.6 mm
- 50 ohm and 75 ohm upon request
- shorter center pin
- stand-off design
#BNC bulkhead PCB
90.jpg/:/cr=t:12.41%25,l:0%25,w:100%25,h:75.19%25/rs=w:360,h:270.6766917293233,cg:true)
*PATENTED* BNC JACK RIGHT ANGLE RECEPTACLE PCB MOUNT
SB028-1*1-90
- 50 ohm
- for 1.6 mm thickness PCB
#BNC receptacle PCB
180.jpg/:/cr=t:12.41%25,l:0%25,w:100%25,h:75.19%25/rs=w:360,h:270.6766917293233,cg:true)
*PATENTED* BNC JACK STRAIGHT RECEPTACLE PCB
SB028-1*1-180
- 50 ohm
- for 1.6 mm thickness PCB
#BNC receptacle PCB
*PATENTED* DUAL BNC JACK RIGHT ANGLE PCB MOUNT
SB028SW-2(2*1)90
- for both 50 ohm or 75 ohm
- switch function on lower BNC
#BNC PCB mount
BNC JACK RIGHT ANGLE PCB MOUNT
SB045
- 75 ohm
- HD-SDI connector
- CCTV HDTV connector
#BNC HD-SDI
BNC TWO JACK IN ONE ROW PCB MOUNT
SB045-2
- 75 ohm
- HD-SDI connector
- CCTV HDTV connector
#BNC HD-SDI
BNC THREE JACK IN ONE ROW PCB MOUNT
SB045-3
- 75 ohm
- HD-SDI connector
- CCTV HDTV connector
#BNC HD-SDI
BNC JACK PCB EDGE MOUNT 75 OHM HD-SDI
SB048-1.73
- 75 ohm
- 4 GHz HD-SDI connector
#BNC HD-SDI
BNC JACK PCB MOUNT FOR HDTV 75 OHM HD-SDI
SB058-3
- 75 ohm
- 4 GHz HD-SDI connector
#BNC HD-SDI
BNC DUAL PORT JACK RIGHT ANGLE PCB RECEPTACLE
SB124-2-N
- 50 ohm or 75 ohm
- two port design
- port to port pitch 15.2 mm
#BNC 2 port #BNC dip
BNC DUAL PORT JACK RIGHT ANGLE IN ONE COLUMN W/ EASY ISOLATION
SB124-2-15.0-75
- 75 ohm
- cost-down isolation design
- port to port pitch 16 mm
#BNC two port #isolation design
-6.jpg/:/cr=t:12.41%25,l:0%25,w:100%25,h:75.19%25/rs=w:360,h:270.6766917293233,cg:true)
BNC DUAL PORT RIGHT ANGLE JACK IN ONE COLUMN
SB124-2*1-6
- for both 50 ohm and 75 ohm
- black or white for housing and insulator
- PA66 housing
#BNC surveillance connector
BNC 2*2 JACK RIGHT ANGLE PCB MOUNT
SB124-2*2-6
- for both 50 ohm and 75 ohm
- black or white for housing and insulator
- PA66 housing
#BNC surveillance connector
BNC JACK RECEPTACLE FOR PCB
SB125
- 50 ohm or 75 ohm
- pin to pin pitch sq. 6.88 mm
#BNC straight jack
BNC JACK RECEPTACLE PCB MOUNT
SB131-2
- 50 ohm or 75 ohm
- pin to pin pitch 10.16 mm
#mounting hole
BNC JACK ISOLATED RIGHT ANGLE PCB MOUNT
SB142-90
- 50 ohm or 75 ohm
- isolated black or white housing
- housing height of 12.3/13.1/15.8 mm
#BNC surveillance connector
BNC STRAIGHT JACK PCB MOUNT
SB142D-180
- 50 ohm or 75 ohm
- housing height of 12.7/13.1/15.8 mm
- diagonal pin design
#BNC surveillance connector
BNC JACK RIGHT ANGLE BULKHEAD PCB MOUNT
SB142-6
- 50 ohm or 75 ohm
- pin to pin pitch sq. 6.35 mm
- stand-off design
#BNC bulkhead
BNC JACK RIGHT ANGLE PCB MOUNT
SB177
- 50 ohm or 75 ohm
- pin to pin pitch sq. 6.6 mm
- stand-off design
#BNC PCB mount
BNC JACK RIGHT ANGLE PCB MOUNT
SB189-10-LJ
- 50 ohm or 75 ohm
#BNC PCB mount
DUAL BNC RA. JACK PCB MOUNT
SB142-2X1-B2A214
- 75 ohm
- Center pins gold plated; other pins nickel plated
- parts are optional
#BNC PCB mount
ADAPTER APPLICATION

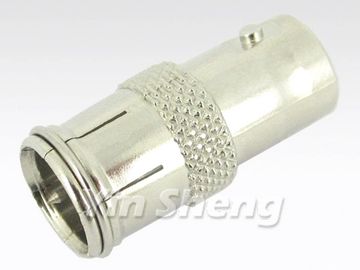

BNC JACK TO F QUICK PLUG ADAPTER
SB053
- BNC female with 50 ohm or 75 ohm
- F plug is designed for quick on and off
#quick adapter
BNC PLUG TERMINATOR
SB116
- 50 ohm and 75 ohm
- resistor of different watts upon request
#terminator
BNC PLUG TERMINATOR WITH CHAIN
SB117
- 50 ohm and 75 ohm
- resistor of different watts
- chain design
#terminator
BNC JACK TO BNC JACK ADAPTER
SB128
- available for 50 ohm and 75 ohm
- knurled body
#bnc adapter
BNC JACK TO BNC JACK WITH BULKHEAD AND NUT
SB132
- available for 50 ohm and 75 ohm
- body with thread and bulkhead
- nut and washer
#bnc adapter
BNC JACK ISOLATED BULKHEAD TO BNC JACK ADAPTER
SB132B
- available for 50 OHM and 75 OHM
- isolated bulkhead design
- body with thread for screwing
- nut and washer available
#double jack adapter
BNC DOUBLE PLUG ADAPTER
SB133
- 50 ohm and 75 ohm available
#adapter
BNC "T" TYPE, ONE PLUG TO TWO JACK ADAPTER
SB134
- 50 ohm and 75 ohm available
#adapter
.jpg/:/cr=t:12.41%25,l:0%25,w:100%25,h:75.19%25/rs=w:360,h:270.6766917293233,cg:true)
BNC RIGHT ANGLE PLUG TO JACK ADAPTER , "L" TYPE
SB135
- 50 ohm and 75 ohm available
#adapter
BNC THREE JACK ADAPTER, "T" TYPE
SB136
- 50 ohm and 75 ohm available
#adapter
BNC PLUG TO UHF JACK ADAPTER
SB140
- 50 ohm
#adapter
BNC PLUG TO RCA PLUG ADAPTER
SB144
- 50 ohm
#adapter#interseries
BNC PLUG TO N JACK ADAPTER
SB145
- 50 ohm
#adapter#interseries
BNC PLUG TO RCA JACK ADAPTER
SB146
- 50 ohm
#adapter#interseries
BNC PLUG TO F JACK ADAPTER
SB147
- 50 ohm and 75 ohm available
#adapter#interseries

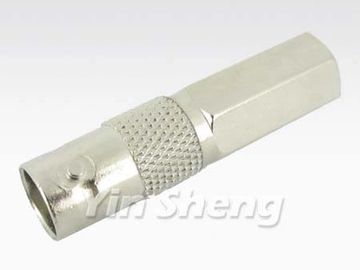

BNC JACK TO F PLUG ADAPTER
SB150
- 50 ohm and 75 ohm available
#adapter#interseries
BNC JACK TO N PLUG ADAPTER
SB155
- 50 ohm and 75 ohm available
#adapter#interseries
BNC JACK TO RCA PLUG ADAPTER
SB156
- 50 ohm
#adapter#inter-series
BNC JACK TO F JACK ADAPTER
SB158
- 50 ohm and 75 ohm available
#adapter#inter-series
BNC PLUG TO BNC JACK ADAPTER
SB164
- 50 ohm and 75 ohm available
#adapter#inter-series
BNC ONE PLUG TO TWO JACK ADAPTER
SB169
- 50 ohm and 75 ohm available
- BNC "F" type
#adapter
BNC ONE PLUG TO TWO JACK ADAPTER
SB171
- 50 ohm and 75 ohm available
#adapter
