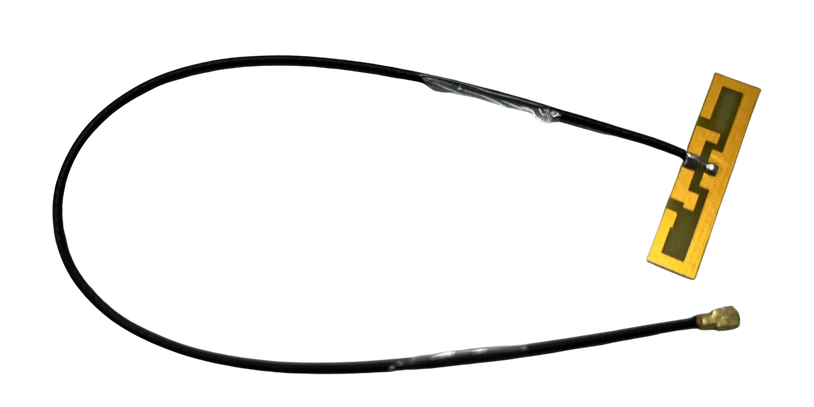

Wi-Fi PCB ANTENNA

---

RF ANTENNA Wi-Fi PCB Trace MHF Adhesive , 6E triple band.

•  Maintechnical specifications

1. Frequency Range (MHZ) : 2400-2500/5150-7125MHz embedded.
2. Impedance(Ω) : 50
3. Gain(dBi) :  3±1
4. VSWR :  <2.0
5.  Polarization :  Linear
6. Radiation :  Omni-directional

• Physical Properties

1. Antenna cover :  PCB
2. Connector type : I-PEX
3. Exposed length : 200 mm
4. Operating Temperature :  -20℃~+70℃
5. StorageTemperature:  -20℃~+60℃
